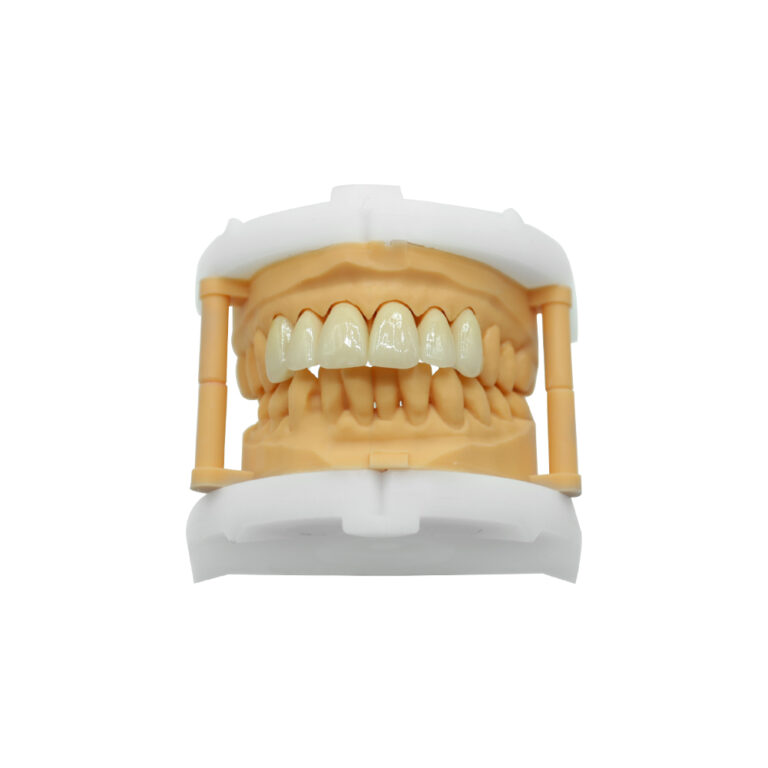

Layered Zirconia Crowns and Bridges

When Layered Zirconia Is the Wrong Choice

A veneered restoration places two materials under opposing thermal and mechanical stresses. That interface will fail if the foundation isn't stable. Three situations rule it out:

1. Bruxism and Parafunctional Habits

Lateral grinding and clenching generate non-axial shear forces right at the porcelain–zirconia interface — the point where the bond is weakest. Two independent lines of evidence point the same way:

• The porcelain layer is the vulnerable part. A systematic review and meta-analysis of implant-supported single crowns found that veneered restorations chip at roughly four times the annual rate of monolithic ones — 1.65% versus 0.39% per year (p=0.017). (Pjetursson et al., 2021)
• Monolithic ceramics tolerate grinding. Two 2026 publications report on the same 3-year randomized trial of monolithic lithium-disilicate and zirconia molar crowns in patients with confirmed sleep bruxism: no technical complications occurred in any group, and sleep bruxism was not associated with increased failure or complication. (Bömicke et al., 2026; evidence-based commentary)

Read together, the message is consistent: what survives grinding is the restoration with no porcelain on it. We do not have equivalent long-term trial data for veneer performance in diagnosed bruxers, and we won't pretend we do.

What we do instead: For a confirmed bruxer we recommend full-contour monolithic zirconia — no porcelain layer, no interface to delaminate. If esthetics are critical and the patient wants to proceed anyway, we design for it (heavier connectors, reduced porcelain), state the elevated chipping risk in writing, and recommend a protective nightguard.

2. Insufficient Occlusal Space

Layered zirconia needs room for two materials: a zirconia framework of at least 0.5 mm under a separate porcelain layer. Add the porcelain thickness you need for esthetics and you land at roughly 1.5 mm of occlusal clearance. Below that you must either under-support the porcelain or thin the zirconia — and both compromise the restoration.

What we do instead: For space-limited cases (≤1.3 mm), we propose full-contour multilayer (gradient) zirconia. It delivers esthetic shading in a single material — no interface, no chipping.

3. Long-Span Bridges, Especially in the High-Load Posterior

Porcelain flexure amplifies with span length: the longer the pontic, the greater the lever stress concentrated at the connector. Five units is the conventional threshold for "long-span," and past it three factors compound: each abutment should carry no more than one pontic; the bone support behind an abutment limits how much extra occlusal load it can absorb; and the wider the span, the greater the lever stress in the connector. In pooled clinical data, zirconia-ceramic prostheses as a group record both more failures and significantly more chipping than metal-ceramic — the numbers are in How to Read the Clinical Numbers below.

What we do instead: For long-span posterior cases we limit porcelain to the facial surface, or go full-contour monolithic zirconia with cutback and stain. If facial esthetics matter, we widen the connector and narrow the pontic rather than adding porcelain.

Why Porcelain Chips: The CTE Mismatch

Most dentists know that layered zirconia crowns chip. Few understand why — and that understanding determines whether you can prevent it.

The Mechanism

Zirconia and feldspathic porcelain have different coefficients of thermal expansion (CTE). During the final cooling phase after firing, the porcelain shrinks more than the zirconia core. This creates residual tensile stress at the interface — a pre-loaded crack waiting for a trigger.

A five-year retrospective study of 1,143 zirconia restorations (144 monolithic, 999 layered) found that layered failures clustered around chipping — specifically where unsupported veneering porcelain exceeded 1.5 mm, with those failures concentrated between 24 and 36 months. In the same cohort, layered restorations survived at 95.8% versus 100% for monolithic. (Lolos et al., 2025)

The 1.5 mm Threshold

We design our layered restorations so that no region of veneering porcelain is both thicker than 1.5 mm and unsupported by the zirconia core. Thicker build-ups are staged: porcelain applied in thin increments, fired between layers, thickness checked before each firing. This doesn't eliminate CTE mismatch, but it keeps residual stress below the fracture threshold in normal function.

Our Interface Control Workflow

Chipping isn't inevitable if you control the bond. Here's what we do — in order — for every layered zirconia case:

1. Zirconia Framework Design (CAD)

• Wall thickness: 0.5–0.7 mm labial/buccal, ≥0.8 mm lingual/palatal.
• Porcelain support: All porcelain regions are backed by zirconia — no floating cusps or unsupported incisal edges.
• Connector design: Sized to the span and the load — heavier connectors for posterior and long-span work, verified in the CAD software before milling.

2. Milling & Sintering

• We mill from pre-sintered blanks in the standard high-strength 3Y-TZP grade.
• Sintering follows manufacturer-locked curves: controlled ramp rate, verified dwell time, logged for every furnace load.
• Shrinkage compensation: calibrated per material batch using standard test blocks.

3. Surface Preparation

After sintering, the zirconia coping is air-particle abraded (50 μm aluminum oxide) to roughen the bonding surface, then ultrasonically cleaned. We do not abrade a finished, glazed surface: blasting roughens it, and it is surface roughness that drives wear on the opposing tooth.

4. Porcelain Layering

• First firing: wash bake (bonding agent).
• Second firing: dentin build-up to anatomic contour minus 0.3 mm.
• Third firing: enamel layer and incisal characterization.
• Final firing: glaze.

Each layer is applied wet, condensed, and thickness-checked before firing. We do not stack all porcelain in one session — staged firing reduces shrinkage stress.

5. Occlusal Adjustment & Re-Polishing

If you adjust a glazed surface chairside, the restoration must be re-polished. Carbide bur marks create microcracks that propagate under load. We ship every case with written instructions: "Any occlusal adjustment must be followed by diamond polishing paste (6 μm → 1 μm) or re-glazing."

This step is non-negotiable. An in vitro wear study of zirconia against human enamel found polished zirconia to be the most wear-friendly surface tested, while glazed zirconia caused significantly more wear of the opposing enamel — and concluded that surface roughness predicted the wear of the opposing dentition. (Janyavula et al., 2013)

When Chipping Happens: Failure Staging and Remediation

No lab can promise zero chipping. What we can promise is a graded response — the right fix for the right failure.

Stage 1: Minor Edge Chips (<2 mm², no core exposure)

Chairside solution: Smooth with fine diamond, polish with alumina paste. No remake needed. Notify us for records, but this does not trigger a warranty claim.

Stage 2: Moderate Chipping (2–6 mm², core exposed, no load-bearing cusp)

Repair protocol: Roughen the exposed zirconia, apply a silane/MDP-based bonding agent, then rebuild with composite resin. Repair strength depends heavily on the protocol: in a comparative in vitro study of five methods, the best reached about 13.8 MPa shear bond strength, with the rest ranging down to roughly 10 MPa — all below the intact layered ceramic. That makes composite repair a reasonable fix for a non-load-bearing area, not a substitute for a lost functional cusp. (Habib et al., 2021)

We provide a written repair guide with every bridge case. If you would rather we handle it, ship the restoration back and we will re-layer and re-fire it — at no charge when the failure traces to our production, and even in other cases we will tell you the reason before anything is billed.

Stage 3: Severe Delamination (>6 mm², functional cusp lost, or repeated chipping)

Remake. We fabricate a replacement restoration under our standard remake policy (details below). The original case file is reviewed by our technical lead to identify root cause — design flaw, firing error, or clinical factor (bruxism, occlusal overload). We document findings and revise the design if indicated.

Responsibility Division: Who Controls What

Chipping has multiple causes. Before a case is remade, we determine whether the failure originated in the lab workflow, the clinical workflow, or patient factors. Here's what each side controls:

Our remake policy:

• Most remakes are completed at no charge when the issue originates from our production process (void, firing crack, design error).
• Remakes may be charged when the customer modifies requirements after approval, or when the submitted model/scan was flagged as unclear at intake and the customer requested us to proceed anyway.

We review every case with documentation. If you have a chipping issue, send us photos and the original case file — we'll identify the root cause and explain our findings before proceeding with a remake or repair.

How to Read the Clinical Numbers

When we cite a survival rate or a chipping rate, we give you the study design, follow-up period, sample size, and confidence interval. Here's a worked example — and what those details change about your case selection.

Example: monolithic vs. porcelain-fused zirconia, 10 years

The best available long-term comparison is a 10-year retrospective cohort of 235 patients and 255 single posterior crowns, from Fukuoka Dental College. (Takaesu et al., 2025)

Two details matter more than the headline. First, the design: this is a retrospective cohort, not a randomized trial. It reflects real-world outcomes, and it carries the confounding that comes with that — patients weren't randomized, so case-mix differences are baked in. Second, the interval: a 95% CI that spans 54.6–87.9% is wide, because 255 crowns split across two groups is a small base to hang a decade of follow-up on. Read the number, then read the interval.

What a 5-Year Survival Rate Doesn't Tell You

A 2024 systematic review and meta-analysis pooled 180 bilayered zirconia and 206 metal-ceramic fixed dental prostheses, and confirmed both the direction and the size of the risk: zirconia-ceramic prostheses failed more often (RR 3.64, p=0.009) and chipped significantly more often (RR 2.92, p<0.0001) than metal-ceramic. Its authors also state plainly that long-term evidence beyond 10 years is lacking — of 22 included studies, only 3 had a mean follow-up longer than 10 years. (Chen et al., 2024)

That is exactly why we don't publish a service-life figure. A restoration that survives five years in a 45-year-old patient still has decades of service ahead of it. Extrapolating a 5-year rate into "lasts 10–15 years" is not a finding — it's marketing.

What we tell you: case selection moves the odds more than any material claim. No bruxism, adequate occlusal space, and a short span put you toward the upper end of these ranges. Ignore those three, and you are choosing the lower end deliberately.

Layered vs. Multilayer vs. Monolithic: What's the Difference?

These terms are not interchangeable, but they're often used as if they are. Here's the functional difference:

Materials We Use

All zirconia materials are sourced from verified manufacturers. We can work with your specified brand and batch, or select from our standard inventory:

Zirconia blanks (framework):

• Imported: Wieland, Zirkonzahn, 3M LAVA
• Domestic: Upcera (Aierchuang), Yucera (Yurucheng)

Veneering porcelain: Ivoclar, Shofu, Noritake

Why this matters: Some labs substitute generic "compatible" porcelain to cut costs. CTE mismatch is the #1 cause of chipping. We use manufacturer-matched systems and log every material batch in our production records.

What You Need to Submit

A complete case submission prevents delays and reduces remakes. For layered zirconia crowns and bridges, we require:

Mandatory

Digital scan (.STL, .PLY, .OBJ, .DCM or a CAD native file) or physical impression (PVS, polyether) — prep, opposing, bite registration

Shade selection — Vita shade tab, plus a photo taken with a ring or dual-head macro flash at 5500K. Skip natural light; it shifts the shade and makes color matching unreliable.

Prescription form — material, margin type, contact tightness, occlusal clearance note

Highly Recommended

Pre-op photos — smile, intraoral occlusion, adjacent teeth

Tooth position/angulation notes — especially for single anterior crowns

Antagonist material — if opposing is metal/ceramic, note it (affects wear)

For Bridges (3+ units)

Prep taper & margin depth — undercuts or severe tilt may require modified design

Pontic design preference — ovate, ridge-lap, modified ridge-lap

Connector space — note the interproximal clearance so we can confirm a connector that fits the span

What happens if you skip the bite registration? We'll contact you before starting CAD design. Production pauses until we have it. A missing opposing arch or bite is the #1 cause of design delays.

Pricing, Turnaround, and Remake Policy

Why turnaround excludes your reply time: We start production when we have everything. Most "the lab is late" disputes trace back to a missing opposing arch or an unapproved design sitting in an inbox. We'll notify you the moment a case is paused, and a dedicated coordinator follows the case until it moves again.

FAQ

Q: Can I specify "light chipping only" or "minimal porcelain" to reduce risk? A: Yes. We call this a "cutback" design: porcelain on the facial surface only, full-contour zirconia lingual. It lowers chipping exposure compared with full-circumference veneering, at a small cost in naturalness.

Q: What if the patient is "probably" a bruxer but won't admit it? A: Look for clinical signs: faceting on natural teeth, buccal exostoses, masseter hypertrophy. If two or more are present, note "suspected bruxism" on the Rx form. We'll design thicker connectors and limit porcelain — but we still recommend monolithic.

Q: Do you repair chipped cases in-house, or do I send it back? A: Both. For Stage 1 chips, polish chairside. For Stage 2 (core exposed), you can composite-repair following our protocol, or mail it back and we will re-layer it. For Stage 3 (severe), remake.

Q: How do I know if occlusal clearance is adequate? A: At prep appointment, check vertical space with a Boley gauge or putty bite: ≥1.5 mm from incisal/occlusal surface to opposing. If borderline, send a note — we may recommend monolithic instead.

Q: Can you match an adjacent natural tooth? A: Yes, but we need a high-resolution photo taken with a macro flash at 5500K — not operatory light — and the Vita shade of the target tooth. Single-unit layered zirconia is our most technique-sensitive work, so it follows our standard crown-and-bridge turnaround of 2–3 business days from a complete case.

Q: What's the difference between "IPS e.max" (lithium disilicate) and "IPS e.max Ceram" (veneering porcelain)? A: e.max is a lithium-disilicate glass-ceramic — one material, no zirconia, no layering. e.max Ceram is a feldspathic veneering porcelain, made to be layered over a zirconia framework. Same brand family, completely different materials and indications. If the naming is confusing, say so on the Rx form and we'll confirm the restoration type with you at intake.

Q: Do you provide a digital design preview before milling? A: Yes, on request. If the case is esthetically critical or the anatomy is unusual, ask for a design preview at submission — we'll send the design file or a screenshot to your email or work group for approval before milling. We can also photograph finished work before shipment if you want a QC record.

Summary: When Layered Zirconia Makes Sense

Layered zirconia is not a universal solution. It's a trade-off: you gain the highest esthetics and full custom characterization, and you take on a chipping risk that a monolithic design simply does not have. In the pooled data, veneered restorations chip at roughly four times the annual rate of monolithic ones — that is the price of the porcelain layer, and we would rather you heard the number from us than discovered it in a remake.

Choose layered zirconia when:

• Esthetics are the top priority (anterior, high smile line)
• Occlusion is stable (no bruxism, no parafunctional habits)
• Vertical space is adequate (≥1.5 mm)
• The patient understands and accepts the chipping risk

Ready to submit a case? Contact our case coordination team or send your files through your usual order channel. Questions about layered vs. multilayer design? We're here to help.
